Clean/Pure Steam Generators
CLEAN/PURE STEAM GENERATORS: STAINLESS BOILER UNITS FOR CLEAN, DI WATER, ULTRA PURE APPLICATIONS.
Durable, economical fully integrated stainless steel steam generator units or component steam units. Works with any water qualities, from municipal to deionized (DI Water), all are available in our revolutionary new design which allows for temperature or pressure control of you process steam systems. With the new ‘SG Max’ steam generator you have full control of your process steam with either pressure or temperature control, (standard designs will be temperature controlled unless otherwise specified).
Sizing a Steam Generator typical variables required:
Voltage:
Inlet and Outlet fittings, type and size:
Volume of steam: Boiler horse power (bhp), Lbs/Hr, Kg/Hr
- Food preparation equipment
- Steam reformation
- Fuel cell heating and preheating
- Printing, cleaning, pharmaceutical, bio-tech, sterilization and plastics industries
- Purification
- Humidity generation
- Metal, poly, and ceramic parts cleaning
- Ultra compact size and weight
- Clean, non-porous stainless steel elements
No concern of degradation, stream contamination with carbon steel or porous electrified elements - No water quality requirements, straight tap water to pure DI/RO water
- Significantly reduce the size of your equipment with our new technology, while decreasing the overall weight at the same time
- Reduce the power requirements of your process by 30-40%
- No more wasting power with “Stand-by Idling”
- SAVE MONEY, the CRES-SG is typically 40-50% less expensive than customary boilers/steam generators
- Simple element removal for inspection and cleaning
- Compact heaters from 250 watts to 250kW
- All stainless steel construction standard
- Process temperatures from 600° C (1200° F)
- Atmospheric and high operating pressures
- No booster pumps required
- Optional finishes, electro-polished, passivated and bright annealed for pure clean steam
- Custom sizing and designs for all processes
- Standard type k t/c or 100Ω Plat RTD avail
CLEAN/PURE STEAM Packaged Systems / Mobile Systems
Pure Steam Thermal offers comprehensive solutions for steam generation, including Systems Integration, Circulation, or Inline units. These steam generators can be customized to fit modular or mobile thermal systems based on your specific requirements. With our extensive range of products and expertise,
CLEAN/PURE STEAM Shell and Tube Heat Exchangers
STANDARD SHELL AND TUBE EXCHANGERS (FULL STAINLESS CONSTRUCTION)
Pure Steam Thermal introduces their latest range of cutting-edge heat exchangers, the “SHT” (Shell and Tube) series. These heat exchangers offer exceptional power and durability, all packed into a remarkably compact design that outperforms competitors in the market. They are designed to utilize various working media such as steam, heat transfer fluids, water (WEG).
Additionally, we present the Infinity Shell Electric Tube (SET) heat exchanger, which brings a new level of versatility. This innovative design allows for complete independence from external heat transfer media.

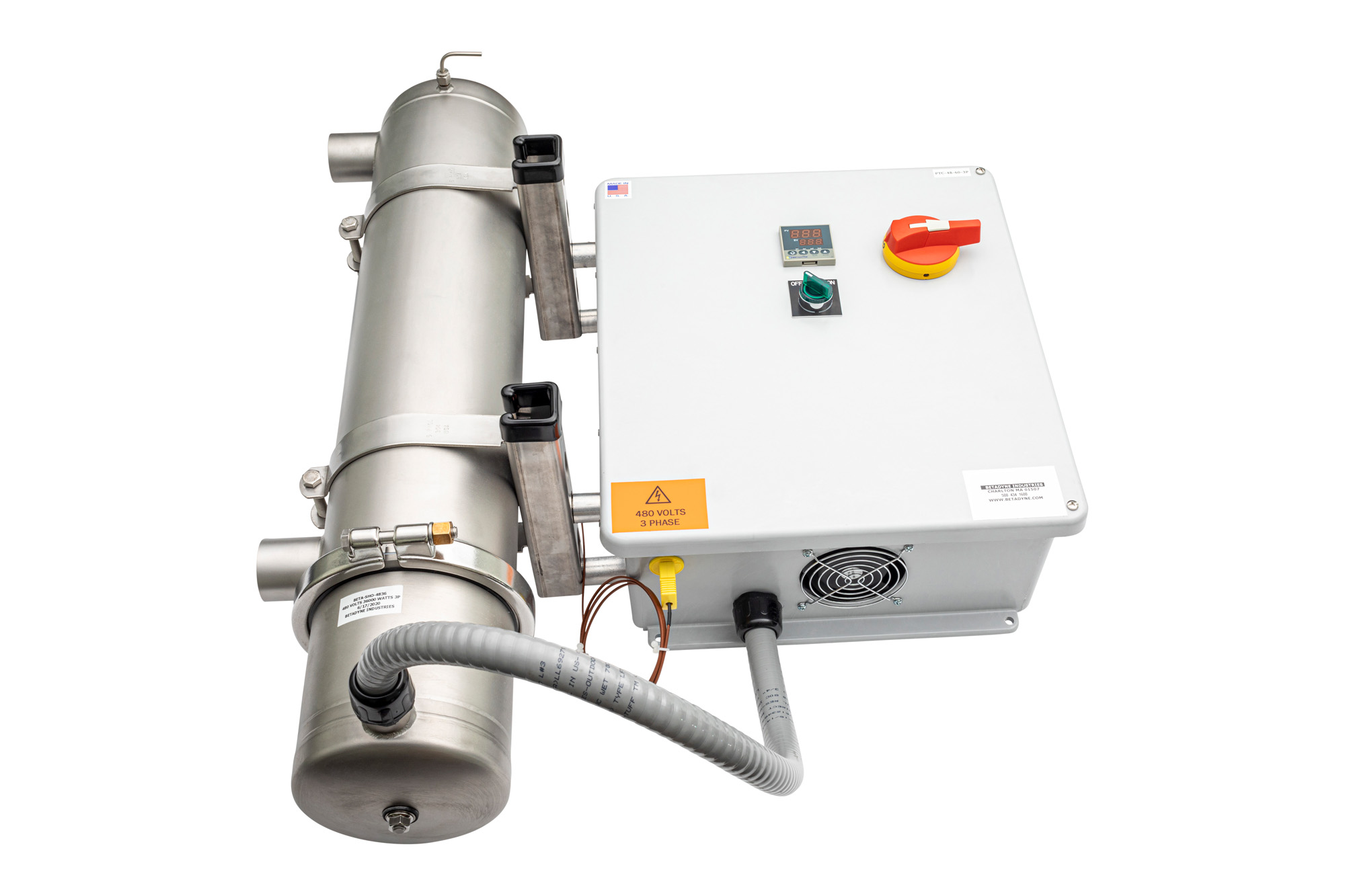

DI WATER Steam Generators
Experience the ultimate in fully isolated stainless steel steam generators designed specifically for your DI/RO applications. Our steam generators are meticulously crafted to provide the ideal surface conditions required by your DI input media, ensuring optimal performance for ultra-pure and ion-sensitive processing needs.

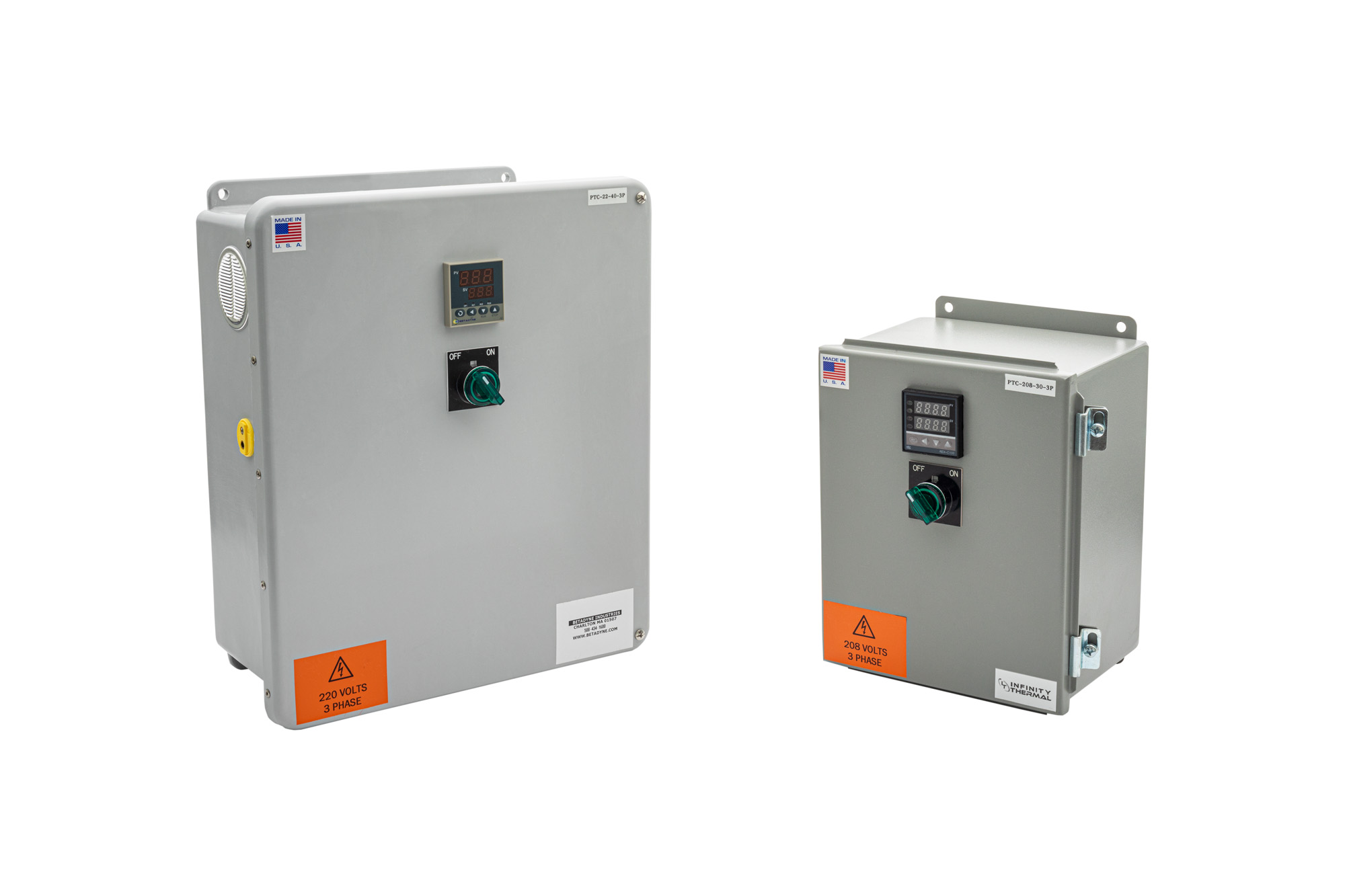

Temperature and Process control panels
Temperature and Process control panels: Use with Infinity heaters and heat exchangers or your existing product/supplier designs. Match powers/current and voltages with pre-existing or new applications. From 10 amps to 1000 amps, 24 Volts – 600 Volts.
Additional Products and Accessories
Piping assemblies, full sanitary or stainless welded piping assemblies DIN and TriCloverTM , ANSI, VCR, Tube, etc . Manifolds and housings, from standard product to custom designs. All finishes, surface roughnesses and treatments available.
Sanitary Centrifugal Pumps, convey all forms of liquids from food grade to pharmaceutical materials.
Sanitary Valves: butterfly valves electric/pneumatic actuation- manual.
- Check valves
- Diaphram valves
- Iso Pressure regulating vavles
- Sanitary safety valves
- Mix Proof double flow valve
- Angle seat valves
- Sanitary ball valves pneumatic or manual
- Process sampling valves
Stainless Fittings:
- Compression fittings
- Dual Ferrule Tube Fittings
- Inline filters 0.5 um – 100 um (sintered element)
- Ultra High Pressure fittings valves, seals and filters
Thermocouples: Infinity Thermal can provide all standard and custom design thermocouples for your applications or processes. Many standard sizes in stock.
Power and temperature control components: Infinity Thermal stocks a wide variety of PID Temperature controllers, process controls and power controls, SSR’s SCR’s, contactors, breakers etc.
Would you like to start a project with us?
Start with us and harness our expertise to achieve your goals. Let’s collaborate and turn your vision into reality. Contact us today!
